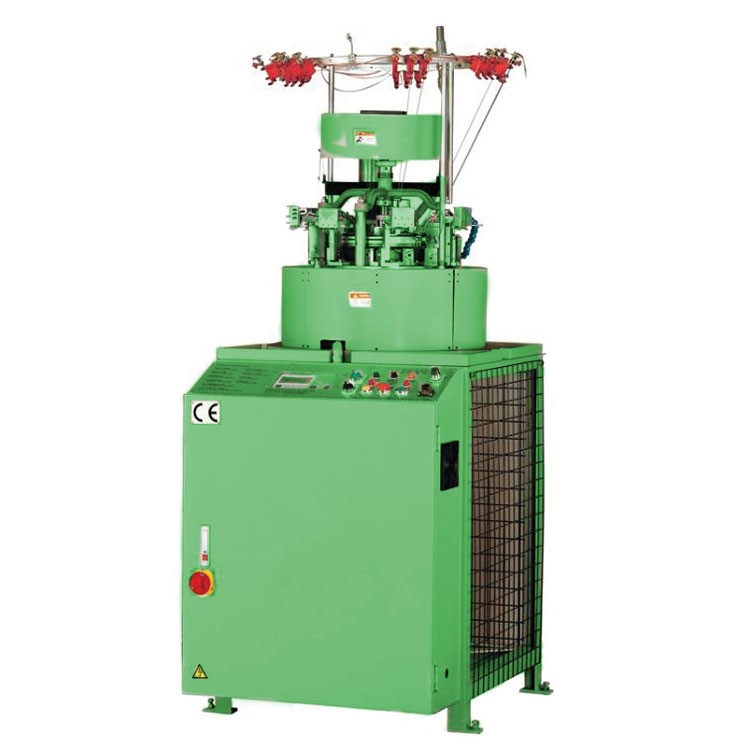

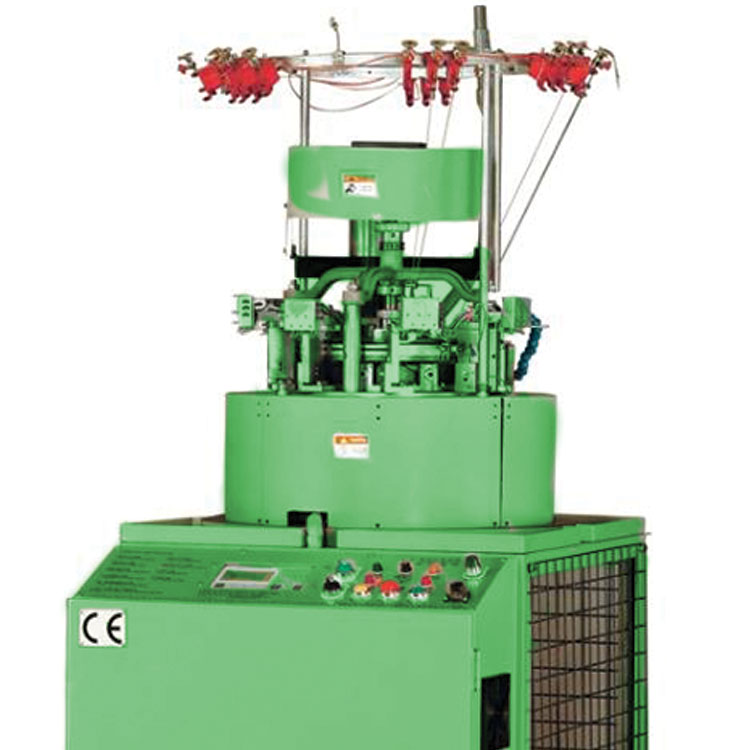

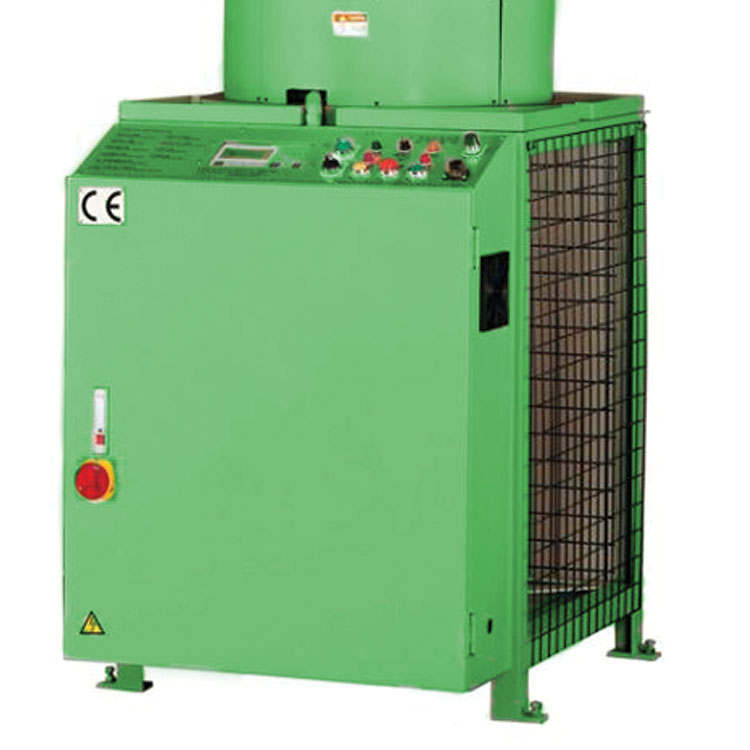

Single Side Computerized Jacquard Machine

chiayou chiayou chiayou

Model No. : CY-MCJ01-C / CY-SCJ01-C

Application:Can be used to make products such as flag scarves.
Contact Now
Category:

Specification



Cylinder Diameter Gauge Power Feeder R.P.M.
2 1/2" ~ 16" 1.5G ~ 26G (single side) 1/2HP ~ 1HP - 10" ~ 60/8" ~ 80/4" ~ 100



Packing List

SIZE NET WEIGHT GROSS WEIGHT PACKING DIMENSIONS
6'' 280KGS 385KGS 120CM × 87CM × 168CM
7'' 300KGS 440KGS 125CM × 102CM × 168CM
8 1/2'' 310KGS 450KGS 138CM × 109CM × 168CM
10'' 320KGS 460KGS 138CM × 109CM × 168CM



Space Occupied:110CMX100CM  Height:300CM

Machine Features

  • Pattern and setting up parameter can be saved in USB input and output.
  • Possibility of 15 color plus ground on the same line.
  • One main feed plus five pattern feeds on the same course.(only for size 10" or over 10")
  • Pattern Depth up to 480,000 dots. (BMP)
  • Actuator can be chosen freely during 8 butts.
  • For differing way of knitting. It can purchase optional parts.
  • Available in 220/380/415V, 3phase 50/60Hz.
  • Number of Needle can be appointed at the request of customer.
  • The voltage and frequency of motor can be appointed at the request of customer.
